Introduction

Setting up a new monitor can be an intimidating task for many. Whether you’re a gaming enthusiast, a professional designer, or someone who simply needs a reliable screen for work, it’s essential to understand the process clearly. This guide will walk you through every step of setting up your new Series 5 524SW monitor, ensuring you have the best display experience possible. From unboxing to configuring settings, and even troubleshooting common issues, we’ve got you covered.

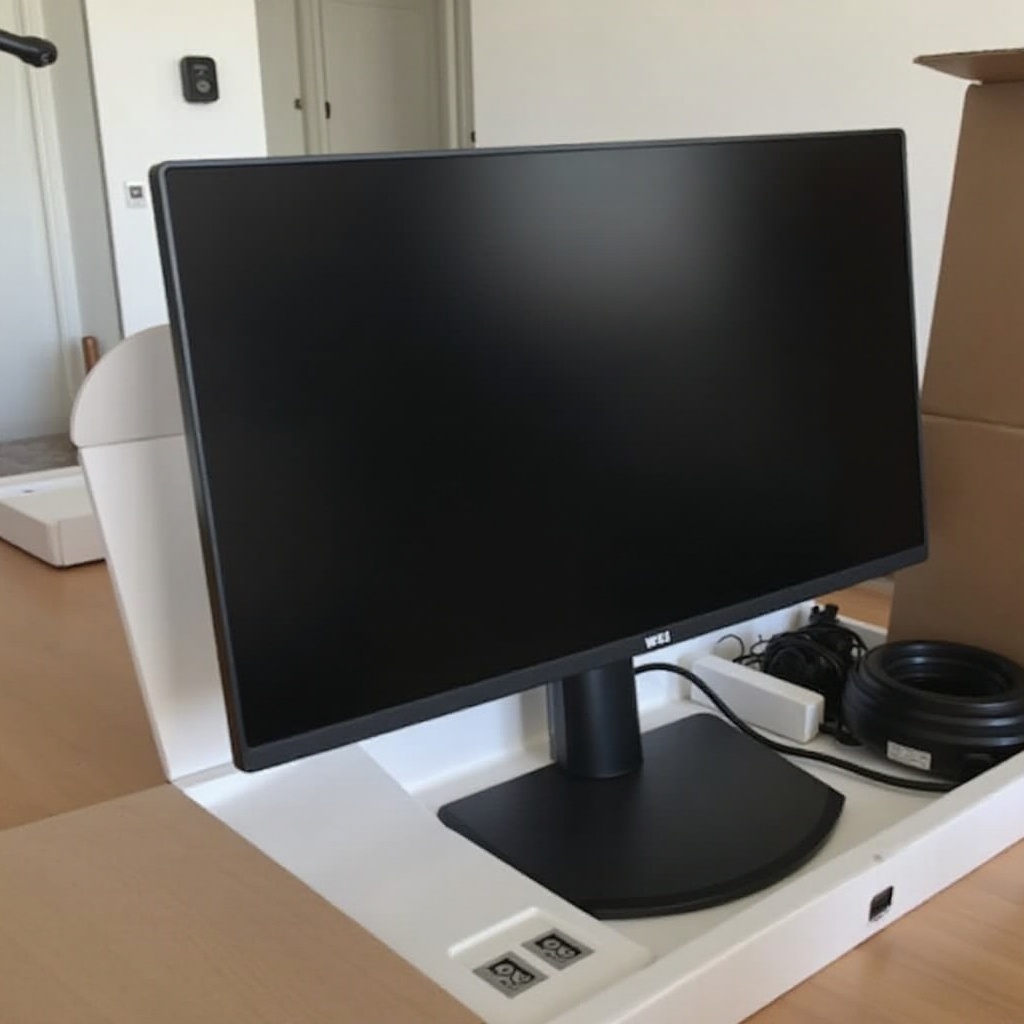

Unboxing and Preparing Your Monitor

Before you begin, ensure you have everything you need. The Series 5 524SW monitor package includes the monitor itself, a stand, power cable, HDMI or VGA cable, user manual, and perhaps some additional accessories.

  • Carefully remove the monitor and all accessories from the box.
  • Check for any visible damages or missing components.
  • Lay out all the components on a clean, flat surface. This will help you keep everything organized as you proceed with the setup.

After ensuring all components are present and intact, you are ready to move on to the physical setup of the monitor.

how to setup series 5 524sw monitor

Physical Setup of the Monitor

Now that you have all components ready, it’s time to assemble the monitor.

  1. Attach the Stand:
  2. Take the monitor stand and align it with the base of the monitor.

  3. Secure the stand by tightening the screws provided. Make sure it’s firmly attached to prevent wobbling.

  4. Position the Monitor:

  5. Place the monitor on your desk or desired setup location.

  6. Adjust the tilt and height for optimal viewing comfort. The Series 5 524SW monitor allows for a range of adjustments to fit your ergonomic needs.

  7. Cable Management:

  8. Use any provided cable management clips or channels to keep your cables tidy. This not only keeps your workspace neat but also prevents any strain or damage to the cables.

With the physical setup complete, you are now ready to connect your monitor to your devices.

Connecting to Your Devices

Connecting your monitor correctly is crucial for optimal performance.

  1. Power Connection:
  2. Connect the power cable to the monitor.

  3. Plug the other end into a power outlet. It’s advisable to use a surge protector to protect your monitor from sudden power spikes.

  4. Video Connection:

  5. Depending on your device, use either an HDMI or VGA cable.

  6. Connect one end of the cable to the monitor and the other end to your computer or other video source.

  7. Additional Connections:

  8. If your monitor has USB ports or audio in/out ports, connect these as needed. These can be useful for additional peripherals like speakers or USB hubs.

Once your monitor is physically connected to your devices, the next step is to configure the monitor settings to ensure the best display quality.

Configuring Monitor Settings

Your monitor is now set up and connected, but optimizing its settings will guarantee the best visual experience.

  1. Turn On the Monitor:
  2. Press the power button on the monitor.

  3. Wait for the display to power up and recognize the connected device.

  4. Access the Menu:

  5. Use the control buttons on the monitor to access the settings menu.

  6. Navigate through options such as brightness, contrast, color balance, and aspect ratio.

  7. Adjust Settings:

  8. Adjust the brightness and contrast to suit your environment. A well-lit room may require higher brightness.

  9. Customize color settings according to your preference or specific needs.

  10. Save Settings:

  11. After making adjustments, save the settings in the monitor’s menu. Most monitors have an option to save different profiles for different uses (e.g., gaming, reading, etc.).

Now that your monitor is configured, the next logical step is to understand how to address any common issues that might arise during usage.

Troubleshooting Common Issues

Even with a smooth setup, you might encounter some common problems. Here’s how to address them:

  1. No Signal Detected:
  2. Check if all cables are securely connected.
  3. Ensure the correct input source is selected on the monitor (e.g., HDMI 1, HDMI 2).

  4. Try restarting both the monitor and the connected device.

  5. Display Issues:

  6. If the screen flickers or the colors look distorted, double-check the cable connections for any loose or damaged cables.

  7. Reset the monitor settings to default and see if the issue resolves.

  8. No Sound (If Your Monitor Has Built-in Speakers):

  9. Ensure the audio cable is properly connected.
  10. Verify that the audio settings on your device are set to output sound through the monitor.

Addressing these common issues will help maintain the performance and longevity of your Series 5 524SW monitor.

Conclusion

Setting up your Series 5 524SW monitor can be smooth and straightforward when you follow these detailed steps. From unboxing and physical assembly to connecting, configuring, and troubleshooting, each step ensures that you get the best possible display performance. Now that your monitor is ready, enjoy the enhanced visual experience that it offers.

Frequently Asked Questions

How do I adjust the brightness and contrast on my Series 5 524SW monitor?

To adjust the brightness and contrast, use the control buttons located on the bottom or side of the monitor to access the menu. Navigate to the settings option and adjust the brightness and contrast levels to your desired preference.

What should I do if my monitor doesn’t detect a signal?

Firstly, check if all the cables are properly connected. Ensure that the monitor input source is correctly selected. If the problem persists, try restarting both your monitor and the connected device. Also, verify the integrity of your cables.

How can I reset my Series 5 524SW monitor to factory settings?

Access the monitor’s on-screen display (OSD) menu using the control buttons. Navigate to the settings or setup section where you will find an option to reset to factory settings. Select this option and confirm to reset all settings to their original state.
